Rupture Discs Safety Basics
Rupture discs widely used in process safety industrial settings, designed to protect process systems, equipment, and personnel from overpressure or vacuum conditions. They act as fail-safe system preventing catastrophic failures before other secondary safety systems activate.
🐬 What Are Rupture Discs?
:::::::
A rupture disc is a non-reclosing pressure relief device designed to rupture at a specific pressure, allowing excess pressure or vacuum to escape. This prevents equipment failure, damage, and safety risks.
💡 Functions of Rupture Discs
:::::::
1.Pressure Relief: Prevents overpressure in pipelines, tanks, or vessels. Example: Protecting a reactor from overpressure during chemical reactions.
2. Vacuum Protection: Prevents equipment collapse under vacuum conditions. Example: Safeguarding storage tanks in cryogenic systems.
3. Early Process Indicator: Signals a pressure breach for immediate corrective action. Example: Alarming operators when a tank exceeds pressure limits
📌 Common Applications
::::::
1. Chemical Plants: Protecting reactors or storage tanks.
2. Oil & Gas: Safeguarding compressors, separators, and heat exchangers.
3. Pharmaceutical and Food Processing: Maintaining sterile environments.
4. Cryogenic Systems: Protecting LNG or liquid nitrogen storage tanks.
5. Power Generation: Providing pressure relief in steam systems.
🛠️ Best Practices
::::::
1. Correct Sizing: Ensure the rupture disc matches your system’s pressure and temperature conditions.Example: Use a disc rated for 120% of operating pressure.
2. Proper Installation: Follow manufacturer guidelines to avoid incorrect orientation or damage.Example: Install with the correct torque to prevent leakage.
3. Routine Inspections: Regularly check for corrosion, wear, or damage.Example: Inspect during scheduled maintenance.
4. Material Compatibility: Choose materials that resist your system’s operating environment.
Example: Use stainless steel for corrosive conditions.

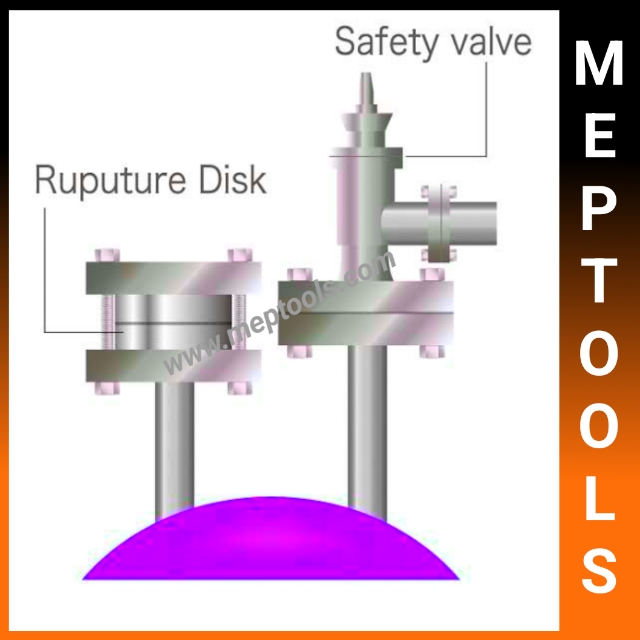

5. Backup Systems: Pair with secondary relief devices for enhanced safety. Example: Combine with a pressure safety valve for critical systems.
⚠️ Common Pitfalls to Avoid
:::::
1. Incorrect Pressure Rating: Using a rupture disc with too high or low a rating.
Example: A 50 psi disc in a 100 psi system causes premature failure or system damage.
2. Improper Handling: Mishandling during installation weakens the disc. Example: Over-tightening bolts leading to cracks.
3. Poor Maintenance: Neglecting routine checks increases risk of failure.Example: Ignoring corrosion on the disc.
4. Bypassing Safety Protocols: Relying on rupture discs without additional safety measures. Example: No secondary relief system for critical applications.
🚀 Why It Matters
::::::
Using rupture discs effectively ensures system safety, equipment durability, and smooth operations. By following best practices and avoiding pitfalls, you reduce risks, prevent failures, and enhance reliability.
Advantages of rupture discs:
📌 Immediate response – nothing responds faster than a rupture disc. Unwanted overpressure and vacuum are relieved in milliseconds.
📌 Complete release of the relief area – maximum opening cross-section for quick and safe pressure relief.
📌 Leakproof – prevents process media from escaping during normal operation, reducing the costs and impact associated with such losses.
📌 Economical solution – significant cost savings compared to other pressure protections.
